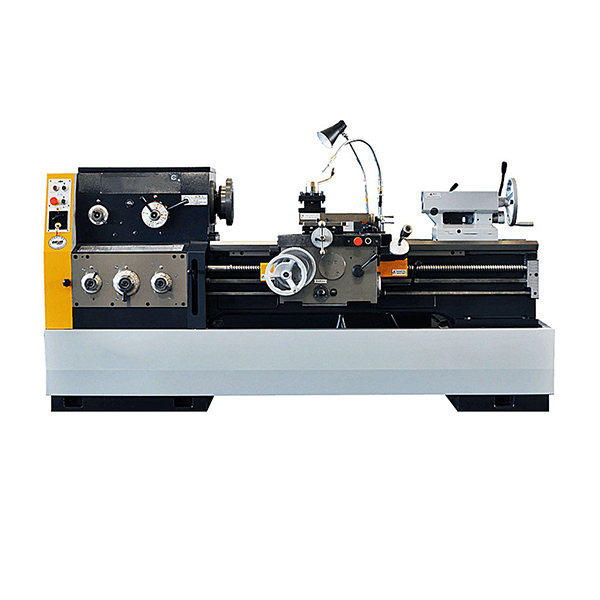

High Quality CW6263/6280 Heavy Duty Metal Cutting Manual Lathe

High Quality CW6263/6280 Heavy Duty Metal Cutting Manual Lathe

The CW6263 and CW6280 are heavy-duty lathes designed for industrial machining environments, delivering exceptional cutting power, rigidity, and precision for large workpiece turning. These universal gap bed lathes are widely used in heavy machinery manufacturing, oil and gas equipment processing, shipbuilding, steel mills, and large repair workshops. The CW series is renowned for its robust cast iron construction, wide hardened guideways, and high-torque geared headstock, making it ideal for demanding heavy cutting operations on large shafts, rollers, flange plates, and pipe components.

မှာယူမှု (MOQ) :
1
ထုတ်ကုန် မူလအစ :
China
ပို့ဆောင်ရေးဆိပ်ကမ်း :
Shanghai
ကြာမြင့်ချိန် :
40
အလေးချိန် :
2000kg

ယခုမေးမြန်းပါ။

Features

CW6263/6280 Heavy Duty Lathe

The CW6263 and CW6280 heavy duty lathes represent the perfect balance of power, precision, and versatility for industrial machining applications. With their large swing capacities, massive spindle bores, high-torque geared headstocks, and gap bed flexibility, these machines are built to handle the toughest turning jobs while maintaining the accuracy required for high-quality finished parts. Whether you are a heavy equipment manufacturer, an oil and gas component supplier, a shipyard, or a large repair facility, the CW6263 and CW6280 deliver the performance, reliability, and durability you need for 24/7 industrial production.

Applications:

1.Heavy machinery manufacturing: Machining of large shafts, rollers, and structural components.

2.Oil and gas equipment: Processing of drill pipe connectors, valve bodies, and pipeline fittings.

3.Shipbuilding: Turning of propeller shafts, rudder stocks, and large marine components.

4.Steel mills: Machining of backup rolls, work rolls, and mill housings.

5.Heavy repair workshops: Reconditioning of large shafts, rollers, and industrial machinery components.

6.Mining equipment: Production of axle housings, gear blanks, and heavy-duty drive components.

specification


Items	Unit	CW6263	CW6280Q
Max. Swing diameter over bed	mm	630	800
Max.Swing diameter over carriage	mm	350	480
Max.Swing diameter over gap	mm	800	1000
Maximum length of the workpiece	mm	1500,3000.5000,6000,8000,10000,12000,14000,16000,18000,20000
Spindle bore and nose head	mm	Φ105; A2-11
Taper of spindle hole front cone and top	mm	metric 120;Morse5
Spindle speed and range	r/min	7.5-1000;18kinds
Longitudinal feed quantities steps and range	kinds;mm	64kinds;0.05-24.3
Range1:1	mm/r	0.1-1.52
Range16:1	mm/r	1.6-24.3
Trace feed range through using gear change	mm/r	0.06-0.912
The ratio of transverse feeding and longitudinal feed		1/2
Rapid move speed of saddle	mm/min	4000
Machine screw pitch	mm	12(Metric)1/2"(inch)
Metric thread species, scope	mm	50kinds,1-240(With 14 kinds of non-standard thread)
Inch thread species, scope	kinds;t.p.i	26kinds;14-1 t.p.i
Module thread species, range	kinds;mm	53kinds;0.5-120
Diametral pitch screw species, scope	kinds; DP	24kinds;28-1 DP
Cross travel of lower knife rest	mm	420		500
Cross travel of upper knife rest	mm	200
Sleeve travel	mm	250
Tailstock sleeve taper		MT6
Main motor power	kw	11
Rapid move motor power	kw	1.1
Coolant pump power	w	90
Lathe guide rail width	mm	550
Max.Load capacity	kg	2000

product introduction

Massive Spindle Bore for Large-Diameter Bar Work
Both models feature a large 104mm spindle bore as standard, with a 130mm optional bore available, allowing thick bar stock to pass directly through the spindle for continuous machining of large-diameter shafts and heavy pipes. This significantly improves production efficiency for long, heavy workpieces.
High-Torque All-Geared Headstock
The all-geared headstock transmission delivers exceptional torque at low speeds, making these lathes ideal for heavy cutting of hard materials like forged steel, cast iron, high-strength alloys, and stainless steel. The wide range of spindle speeds (18 steps) allows operators to select optimal cutting parameters for various materials, workpiece diameters, and finishing requirements.
Complete Thread Cutting Versatility
Equipped with a precision thread cutting gearbox, both models can produce a full range of metric, inch, modulus, and diametral pitch threads, meeting diverse industrial threading requirements for general machining, repair work, and custom part manufacturing.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Community charging overall solution covers all application

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

our certification

Authoritative Certifications, Stable and Reliable Quality.

Manual Lathe

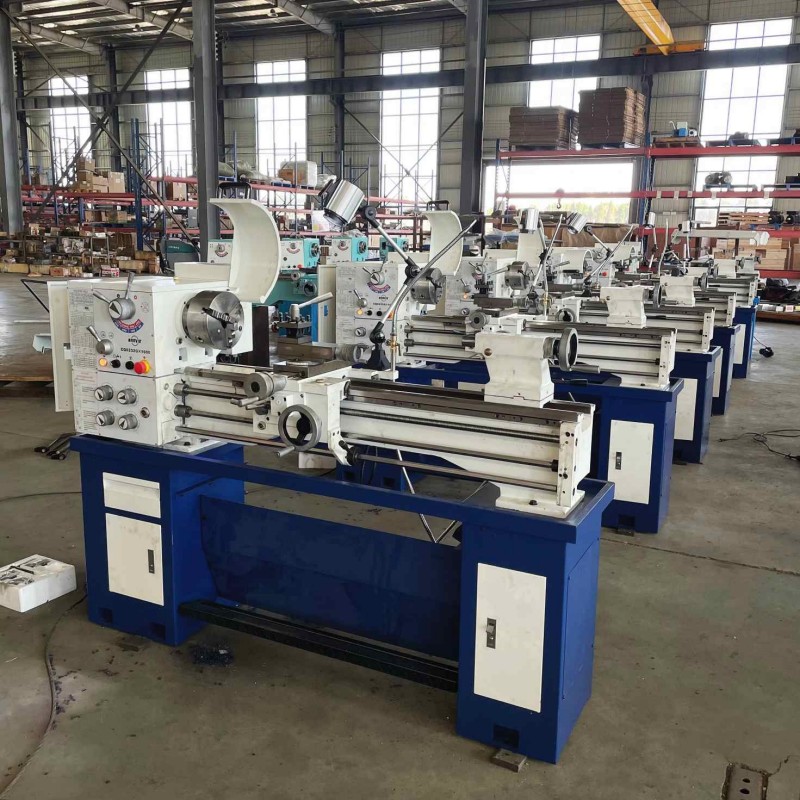

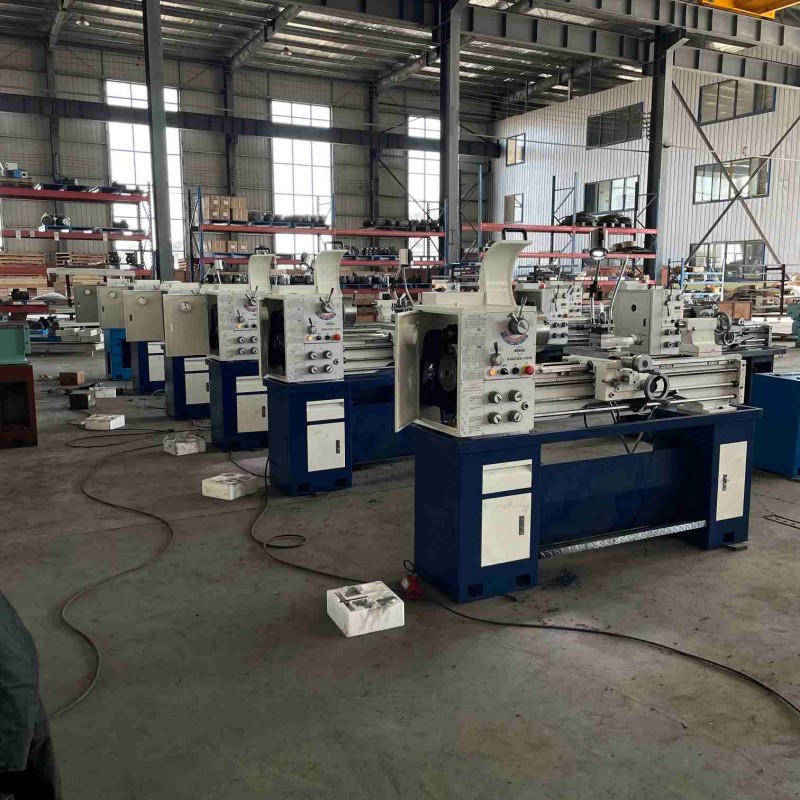

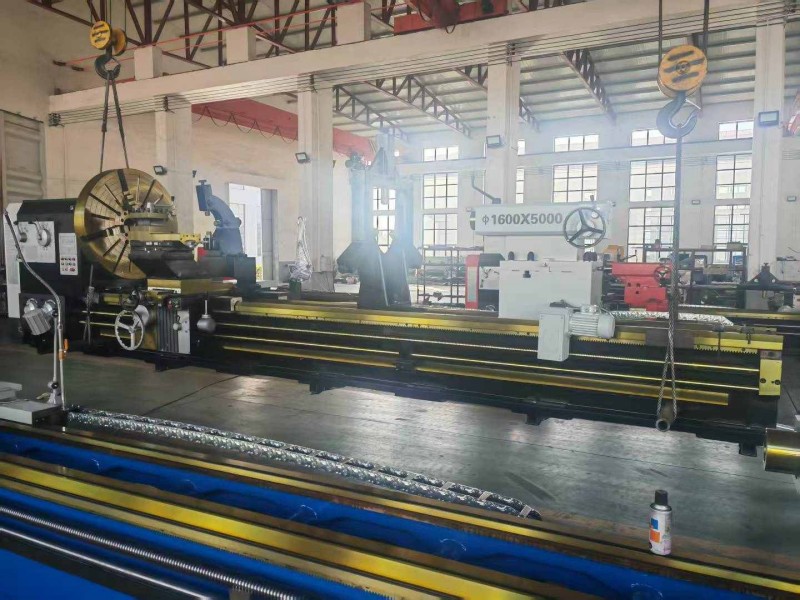

factory show

Professional Production Base, Strength in Precision Manufacturing

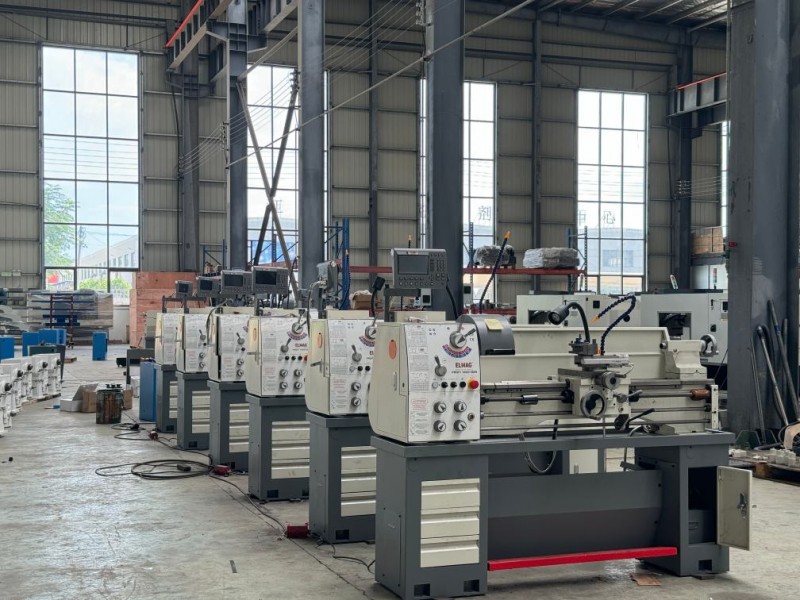

Light Duty Lathe small lathe heavy duty lathe

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

high precision lathe
Heavy machinery manufacturer

1.What is the main difference between CW6263 and CW6280?

The main difference is the swing over bed capacity. The CW6263 offers 630mm (24.8 inches), while the CW6280 provides a larger 800mm (31.5 inches). Both models feature gap bed design for oversized workpieces

2.What materials can these lathes handle?

These heavy duty lathes are designed for hard materials including forged steel, cast iron, high-strength alloys, stainless steel, and non-ferrous metals.

3.How long is the warranty period of this product?

We provide one-year warranty for the industrial universal lathe.

4.What is the MOQ and delivery time of the lathe?

MOQ 1 set, delivery in 40 working days after advance payment.

5.Can it cut different types of threads?

Yes, the CW6263 and CW6280 can cut metric, inch, modulus, and diametral pitch threads, making them highly versatile for various industrial applications.
