CNC slant bed lathe features a bed inclined at a 30°, 45°, or 60° angle, combining rigid construction with advanced automation for high-speed, high-precision turning operations. Unlike flat bed designs, the angled bed allows chips and coolant to fall directly into a chip conveyor, preventing accumulation on critical guideways and ensuring consistent long-term accuracy. These machines are the industry standard for modern CNC turning, widely used in automotive, aerospace, medical device, and general precision engineering sectors.
မှာယူမှု (MOQ) :
1ထုတ်ကုန် မူလအစ :
Chinaပို့ဆောင်ရေးဆိပ်ကမ်း :
Shanghaiကြာမြင့်ချိန် :
40အလေးချိန် :
4300kgFeatures

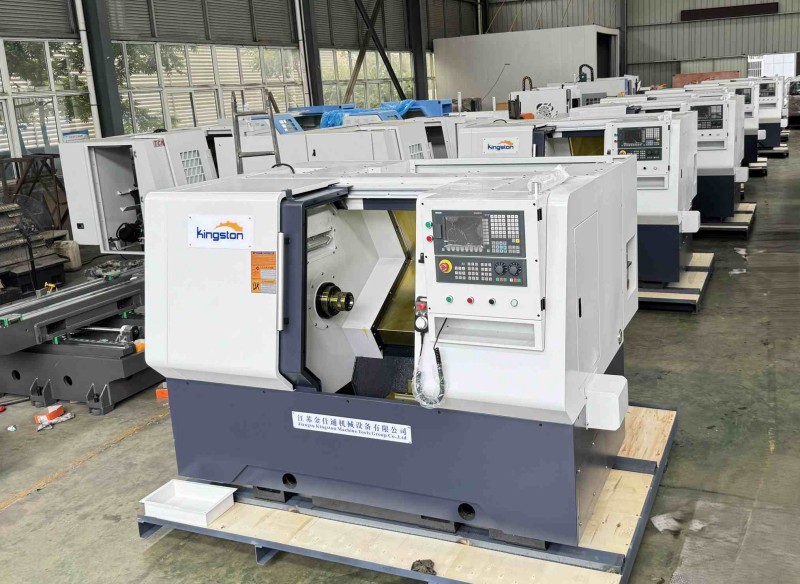

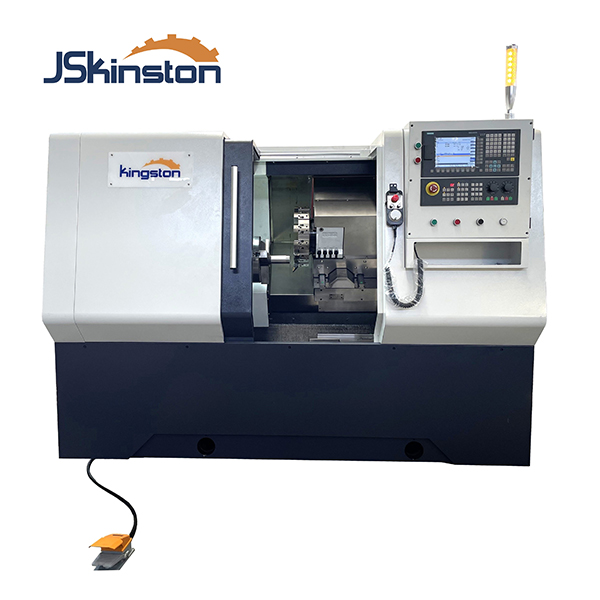

LC550 CNC Slant Bed Lathe
The CNC slant bed lathe represents the gold standard for modern precision turning. With superior chip management, exceptional rigidity, high-speed capabilities, and multi-axis options, these machines deliver faster cycle times, tighter tolerances, and greater efficiency than traditional flat bed designs. Whether you need simple 2-axis turning or complex mill-turn operations in a single setup, a slant bed CNC lathe provides the performance, reliability, and flexibility to meet your production goals.
Applications:
1.Automotive industry: Transmission shafts, gear blanks, brake rotors, and axle components.
2.Aerospace: Engine parts, landing gear components, and hydraulic fittings.
3.Medical devices: Bone screws, surgical instruments, and implantable components.
4.General precision machining: Hydraulic valves, pneumatic fittings, and custom shafts.
5.Electronics: Connectors, heat sinks, and precision housing components.
specification
|
Specification |
Models KST-LC550 |
|
Swing over bed |
500mm |
|
Swing over cross slide |
400mm |
|
Spindle bore Diameter |
65mm |
|
Length of work piece |
430mm |
|
Distance between centers |
400mm |
|
Range of spindle speed |
50~4500r/min |
|
Dia of Spindle through hole |
50 |
|
Spindle nose |
A2-6 |
|
X-travel |
200mm |
|
Z-travel |
550mm |
|
X,Z-rapid traverse |
30m/min |
|
X,Z-repositioning accuracy |
0.003mm |
|
Kind of tool rest |
hydraulic horizontal 12 stations |
|
Number of tools |
9 |
|
Toolholder type |
Rack |
|
Max. tool shrank |
25x25mm |
|
Max Boring cutter dia |
20/25/32/40 |
|
Max travel of tailstock |
350 |
|
Tailstock taper hole |
MT5 |
|
Packing size (LxWxH) |
2350x1900x2000mm |
|
Gross weight |
4300kg |
product introduction
--
Why choose us
Community charging overall solution covers all application
Mature And Stable Technology
Support Customized Solutions
Complete After-sales Service
--
our certification
Authoritative Certifications, Stable and Reliable Quality.

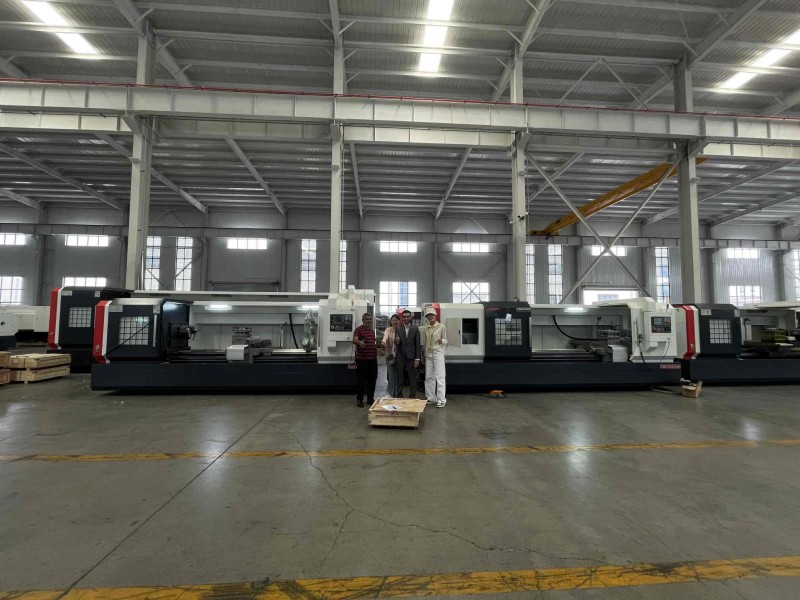

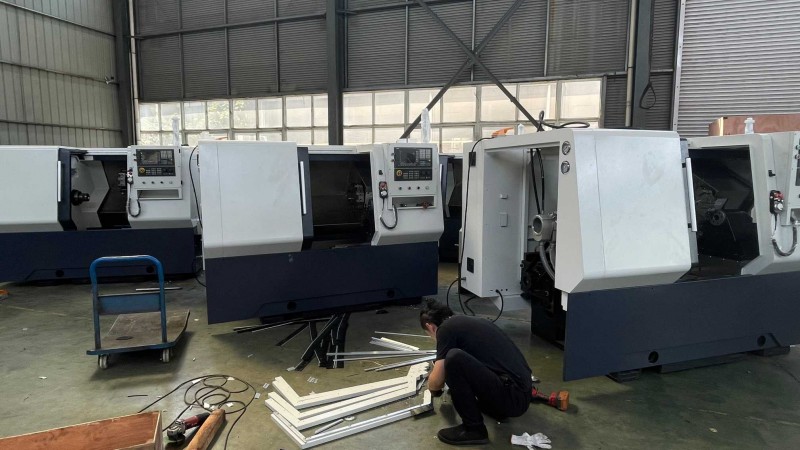

factory show
Professional Production Base, Strength in Precision Manufacturing

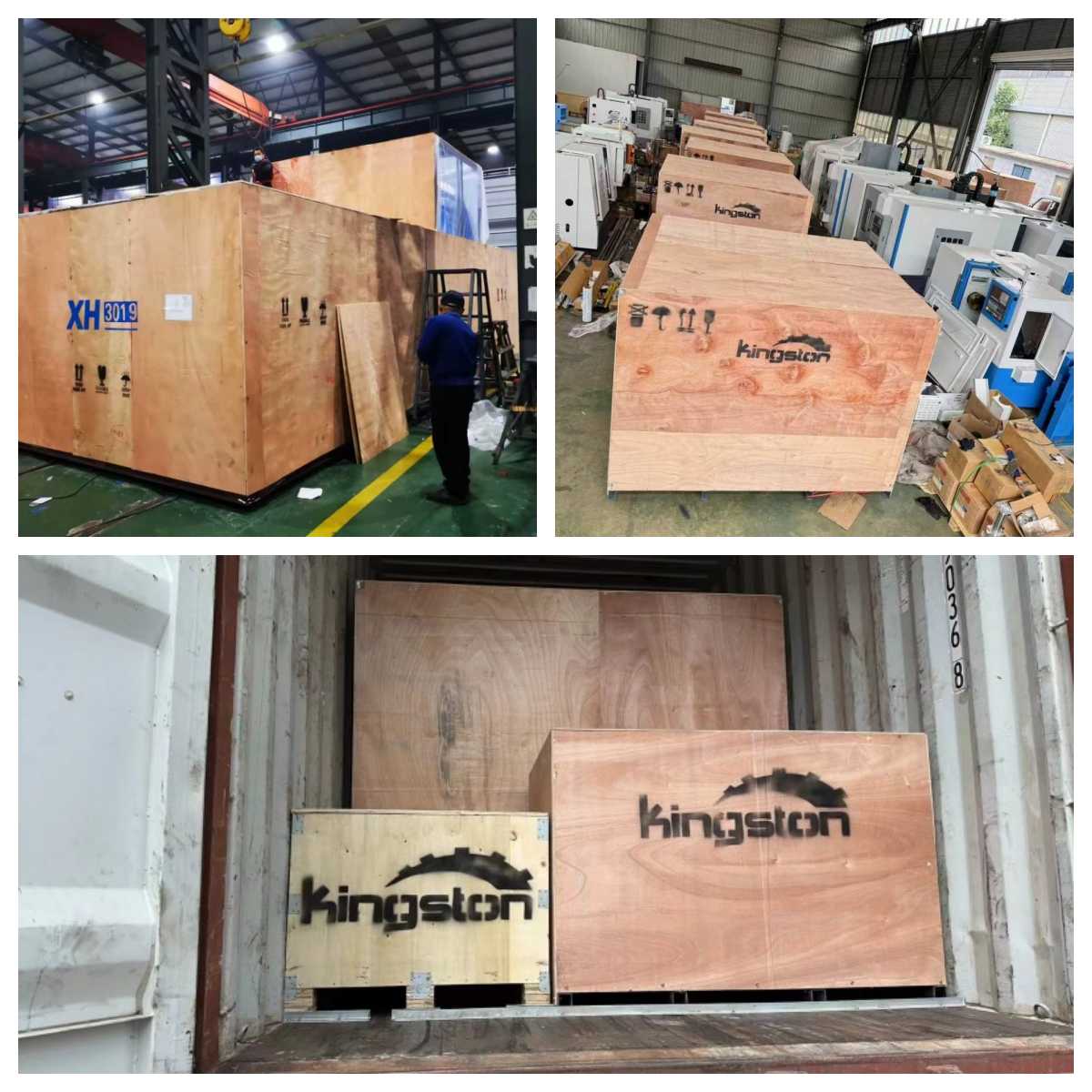

Packing and shipping
Safe & Professional Transportation, On-Time Delivery Guaranteed
FAQ

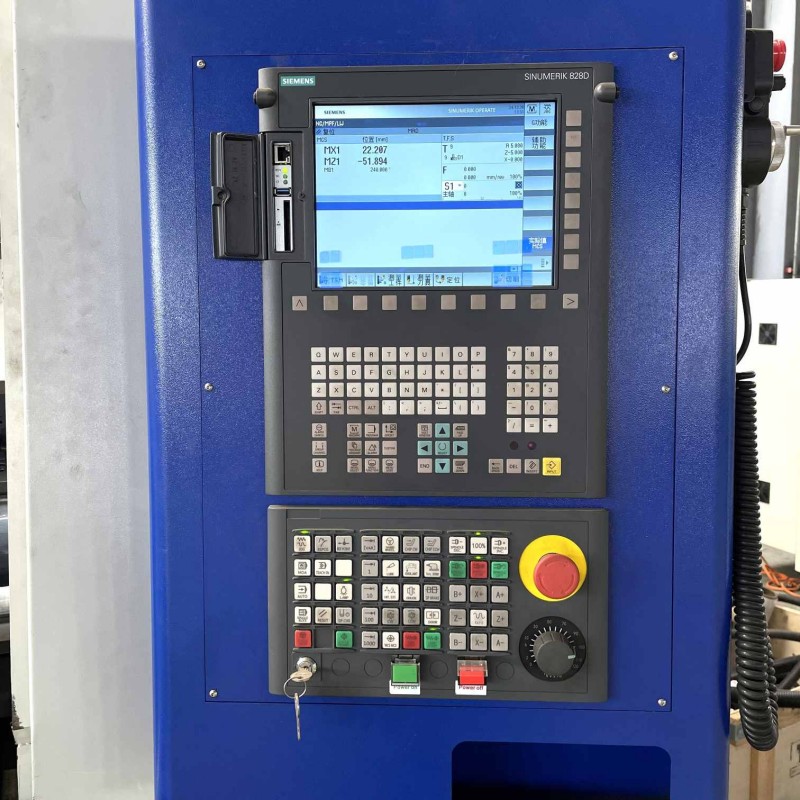

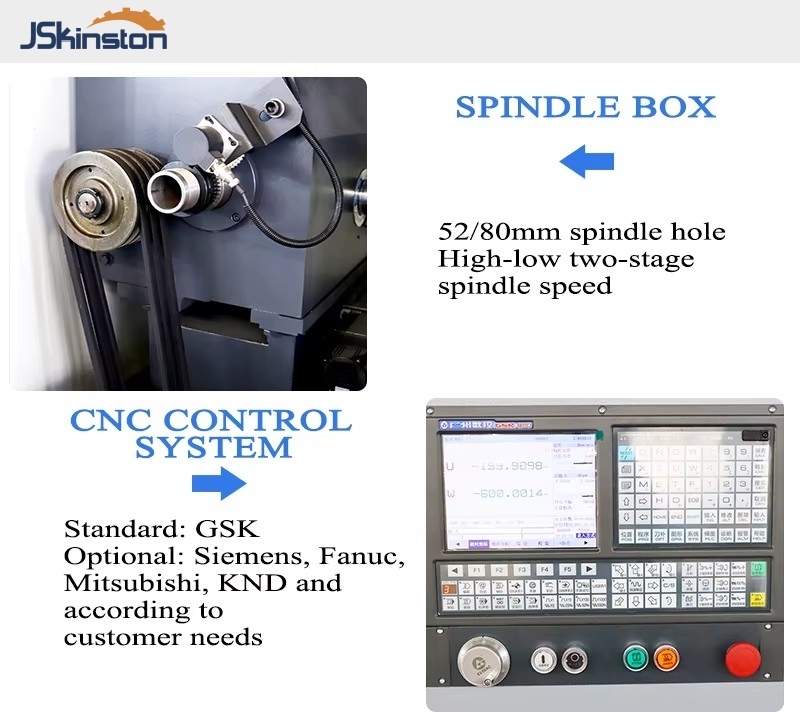

1.What CNC control systems are compatible?
These lathes are compatible with popular CNC controllers including Siemens, Fanuc, GSK, KND, and other standard systems. Please specify your preference when ordering.
2. What is the advantage of a slant bed design over a flat bed?
The angled bed (30°-60°) allows chips and coolant to fall away from the cutting zone, preventing chip buildup on guideways. This results in better surface finishes, longer tool life, and improved long-term accuracy compared to flat bed lathes.
3.How long is the warranty period of this product?
We provide one-year warranty for the industrial universal lathe.
4.What is the MOQ and delivery time of the lathe?
MOQ 1 set, delivery in 40 working days after advance payment.
5.Can a slant bed lathe perform milling and drilling?

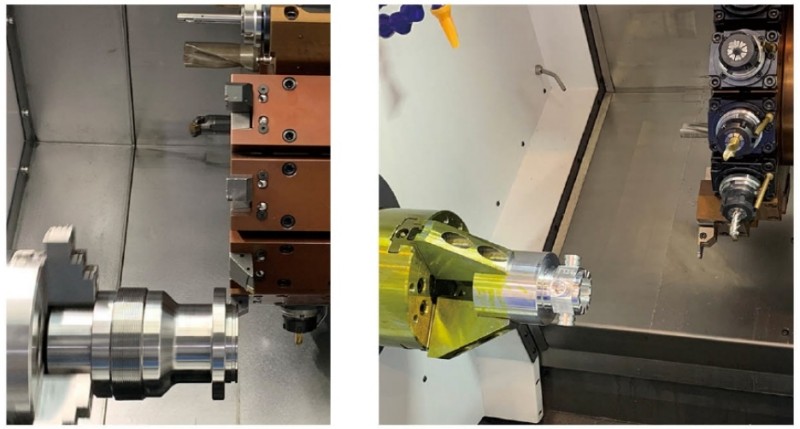

Yes, with optional live tooling and C-axis capability, a slant bed CNC lathe can perform milling, drilling, tapping, and off-center machining in a single setup, eliminating secondary operations.
