C6241/6251 Cheap Price Small Light Duty Universal Lathe Machine

C6241/6251 Cheap Price Small Light Duty Universal Lathe Machine

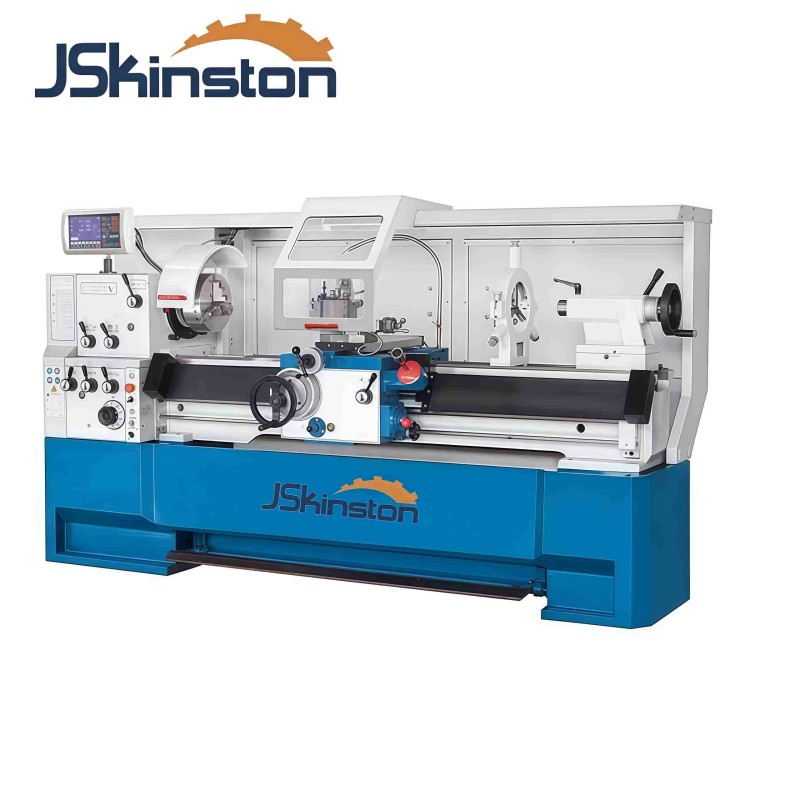

C6241 is a classic horizontal lathe that combines precision, power and versatility. Its saddle design, large bore spindle and full gear transmission are the three core advantages that make it stand out among similar types of lathes. Whether you are a professional machine processing technician or a passionate individual enthusiast, C6241 can provide you with a stable, reliable and efficient processing experience.

မှာယူမှု (MOQ) :
1
ထုတ်ကုန် မူလအစ :
China
ပို့ဆောင်ရေးဆိပ်ကမ်း :
Shanghai
ကြာမြင့်ချိန် :
40
အလေးချိန် :
3270kg

ယခုမေးမြန်းပါ။

Features

Heavy Duty Precision Industrial Universal Lathe

C6241 features a moderate bed width, good rigidity and intuitive operation. It can perform tasks such as external cylindrical turning, internal hole turning, end face turning, drilling, boring, tapping, as well as processing of metric and imperial threads. Its unique saddle design enables the operator to significantly increase the rotational diameter by removing a section of the "saddle" on the bed, thus processing disc or wheel-type workpieces that exceed standard specifications.

Applicable scenarios:
1.Small mechanical processing shop: Undertaking turning and repair processing of various components.
2.Vocational colleges / technical training schools: Using lathes for teaching purposes to cultivate students' practical skills
3.Personal DIY and model making: Creating metal parts, model engines, etc.
4.Agricultural machinery/motorcycle repair station: Produces repair parts such as shafts, bushings, and threads.
5.Research institute laboratory: Prototype production and small-scale component manufacturing

specification

Specification	Model
Specification	C6241	C6251
Swing over bed	410mm(16”)	510mm(20”)
Swing over cross slide	220mm (8-13/16")	305mm (12”)
Swing in gap diameter	640mm (25-1/8”)	735mm (28-7/8”)
Distance between centers	1000mm(40”) 1500mm(60”) 2000mm(80")	1000mm(40") 1500mm(60”) 2000mm(80”) 3000mm(120")
valid length of gap	165mm(6-1/2”)	170mm(6-11/16”)
Width of bed	300mm(11-13/16”)	350mm(13-13/16”)
Spindle nose	D1-6	D1-8
Spindle bore	58mm(2-1/4")	80mm(3-1/8")
Taper of spindle bore	No.6 Morse	No.7 Morse
Range of spindle speed	12 changes,25~2000r/min	12 changes,25~2000r/min
Compound rest travel	128mm(5")	130mm(5-1/8”)
Cross slide travel	285mm(11-14")	316mm(12-716")
Max,sectionof tool	25×25mm(1"×1")
Lead screw thread	6mm or 4T.P.I.
Longitudinalfeeds range	42 kinds,0.031～1.7mm/rev (0.0011"～0.0633"/rev)	35kinds,0.059～1.646mm/rev (0.0022°~0.0612/rev)
Cross feeds range	42 kinds,0.014-0.784mm/rev (0.00033”-0.01837*/rev)	42kinds,0.020-0.573mm/rev (0.00048”-0.01354"/rev)
Threads metric pitches	41 kinds,0.1~14mm	47 kinds,0.2～14mm
Threads imperial pitches	60 kinds,2-112T.P.I.
Threads diametral pitches	50 kinds,4-112DP
Threads module pitches	34 kinds,0.1～7MP
Quill diameter	60mm(2-5/16")	75mm(2-15/16")
Quill ravel	130mm(5")	180mm(7-1/16")
Quil taper	No.4 Morse	No.5 Morse
Main motor power	5.5KW(7.5HP)3PH	7.5KW(10HP)3PH
Coolant pump power	0.1KW(1/8HP)3PH
Overall dimension(L×W×H)	220×108×134cm 275×108×134cm 325×108×134cm	239×115×143cm 284×115×143cm 334×15×143cm 434×115×143cm
Packing size(L×W×H)	225×112×162cm 280×112×162cm 330×112×162cm	245×119×174cm 290×119×174cm 340×119×174cm 440×119×174cm
Net weight	1580kg 1745k9 1900kg	2070kg 2160kg 2435kg 2805kg
Gross weight	1844kg 2049kg 2229kg	2460kg 2550kg 2840kg 3270kg

product introduction

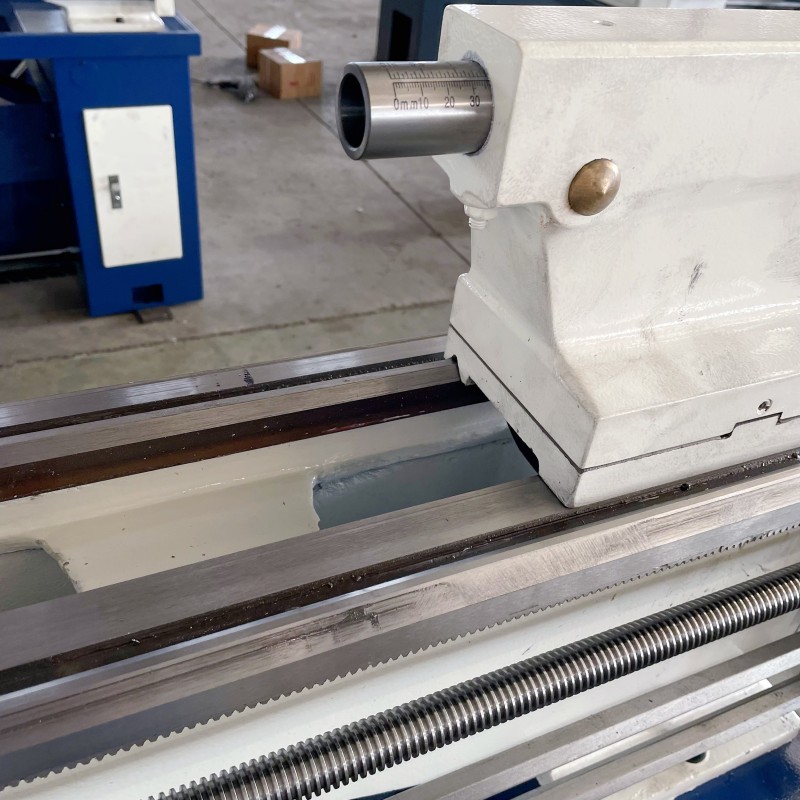

Gap Bed Design for Larger Workpiece Capacity
The C6241 features a unique gap bed design. By removing the gap section, the swing over bed expands from 330mm to approximately 480mm, allowing you to easily machine large brake drums, flywheels, and pulleys. This significantly extends the machine's processing range without requiring a larger, more expensive lathe.
Large Spindle Bore for Efficient Bar Work
The 52mm spindle through-hole allows long bar stock to pass directly through the spindle for continuous machining, eliminating frequent cutting and re-clamping. For batch production of shafts, pins, bolts, and bushings, this feature dramatically improves efficiency and reduces labor costs.

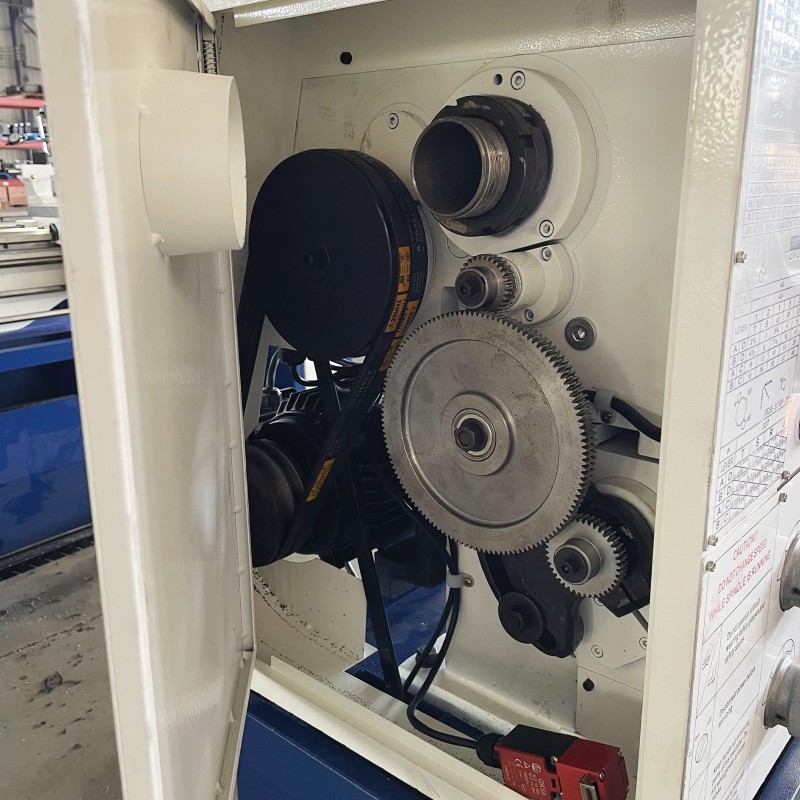

All-Geared Headstock for Heavy-Duty Cutting
The all-geared headstock transmission delivers higher torque and greater power efficiency compared to belt-drive systems. During low-speed heavy cutting, the C6241 maintains strong cutting force and smooth operation, easily handling hard materials like steel while ensuring workpiece accuracy and surface finish.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Community charging overall solution covers all application

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

our certification

Authoritative Certifications, Stable and Reliable Quality.

Manual Lathe

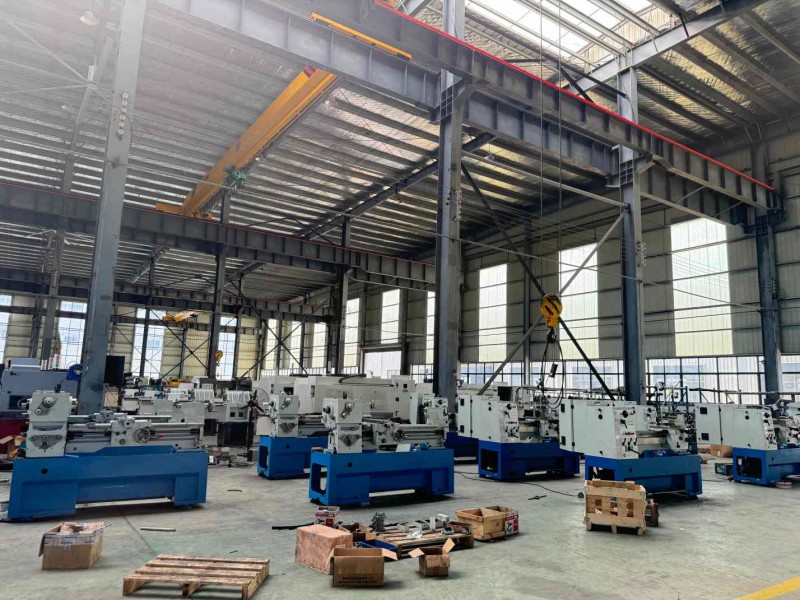

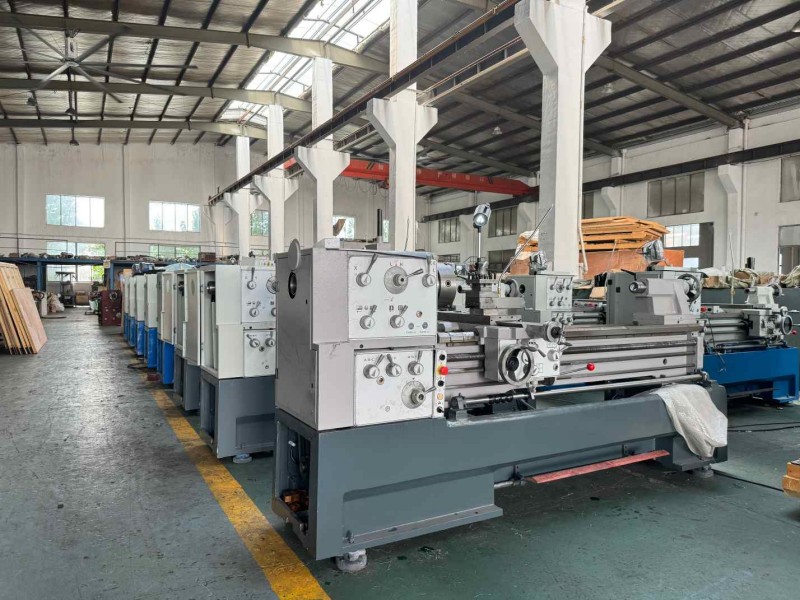

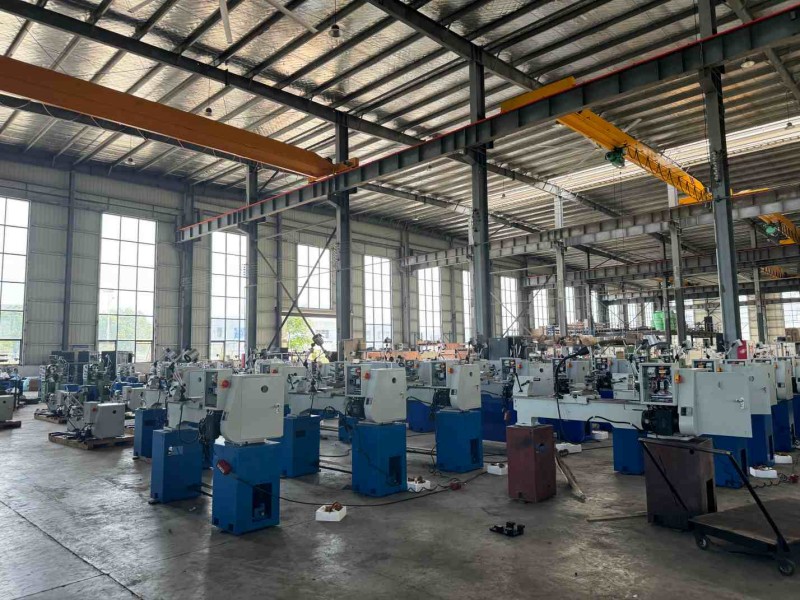

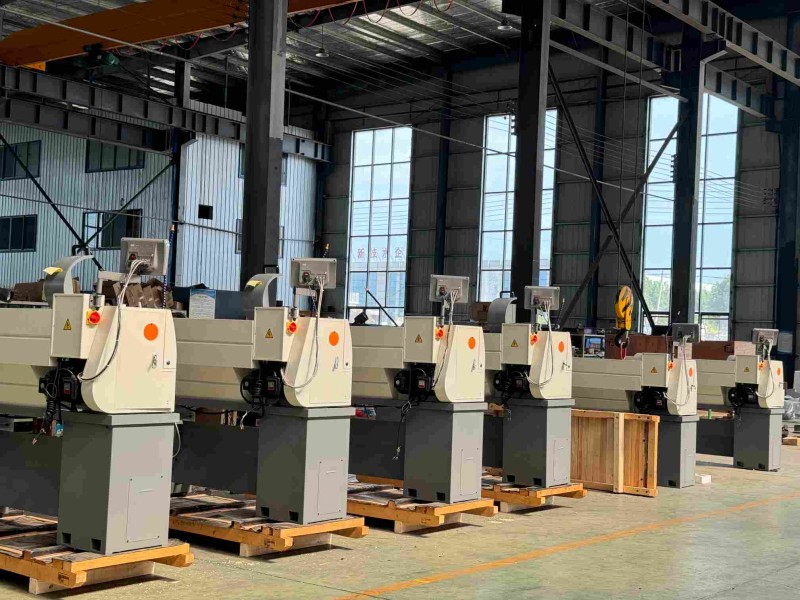

factory show

Professional Production Base, Strength in Precision Manufacturing

Small Light Duty Lathe small lathe machine heavy duty lathe machine

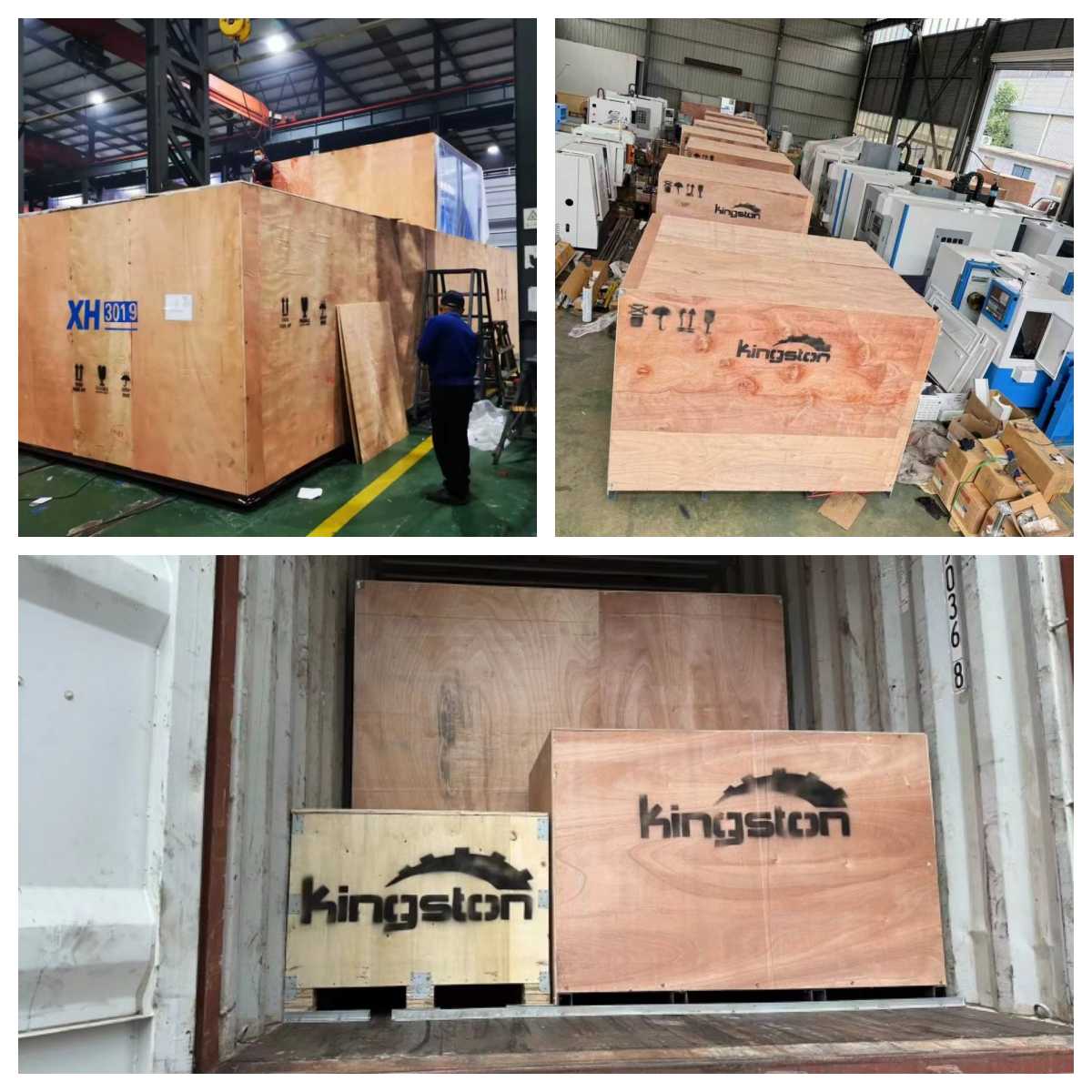

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

high precision lathe
Heavy machinery manufacturer

1.What is the maximum turning diameter of the C6241 lathe?

The C6241 lathe has a swing over bed of approximately 330mm (13 inches). With the gap bed section removed, the swing over gap increases to approximately 480mm (18.9 inches), allowing you to machine large-diameter workpieces such as flywheels and brake drums.

2.What materials can the C6241 lathe machine?

C6241 can machine a wide range of materials including steel, stainless steel, cast iron, aluminum, brass, copper, and various plastics. Its all-geared headstock provides sufficient torque for heavy cutting of hard materials while maintaining precision for softer metals.

3.How long is the warranty period of this product?

We provide one-year warranty for the industrial universal lathe.

4.What is the MOQ and delivery time of the lathe?

MOQ 1 set, delivery in 40 working days after advance payment.

5.Do you provide technical training for the lathe?

Yes, on-site training for installation, use and maintenance is available.
