Bench lathe is a compact, precision metalworking machine designed to be mounted on a workbench or sturdy table, making it the perfect solution for small workshops, garages, and educational facilities with limited floor space. Despite its smaller footprint, a bench lathe delivers reliable performance for a wide range of turning operations, including external and internal cutting, facing, drilling, boring, threading, and parting. Ideal for hobbyists, prototype developers, repair technicians, and vocational training programs, bench lathes offer an excellent balance of affordability, versatility, and precision. Available in both manual and CNC configurations, they can handle materials such as aluminum, brass, steel, and plastics. Whether you need to produce one-off custom parts or run small batch production, a bench lathe brings professional turning capability right to your workbench without requiring the space or investment of a full-sized industrial lathe.
မှာယူမှု (MOQ) :
1ထုတ်ကုန် မူလအစ :
Chinaပို့ဆောင်ရေးဆိပ်ကမ်း :
Shanghaiကြာမြင့်ချိန် :
40အလေးချိန် :
4495kgFeatures
Heavy Duty Precision Industrial Bench Lathe

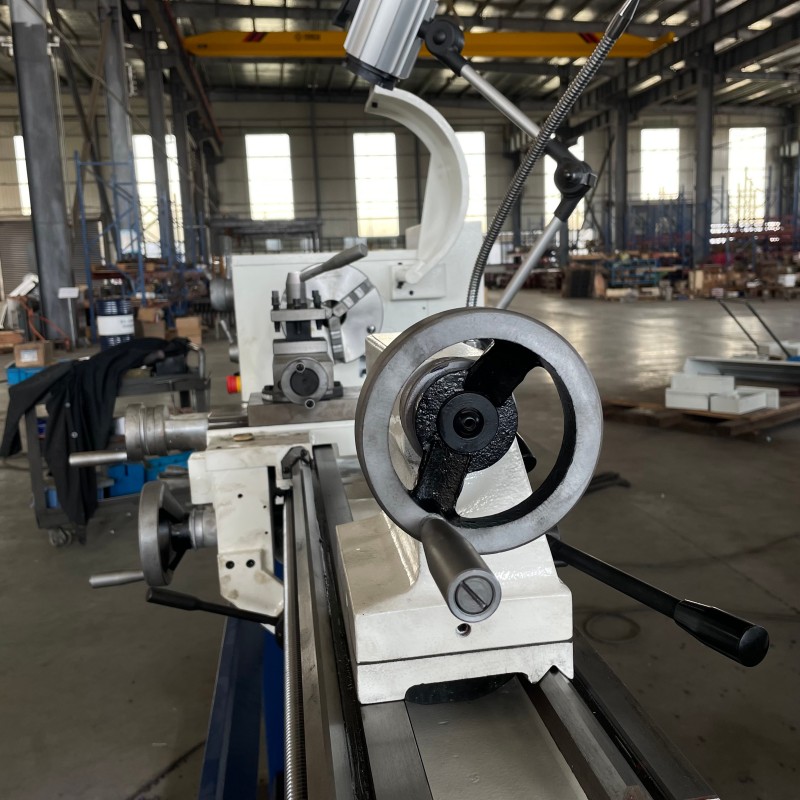

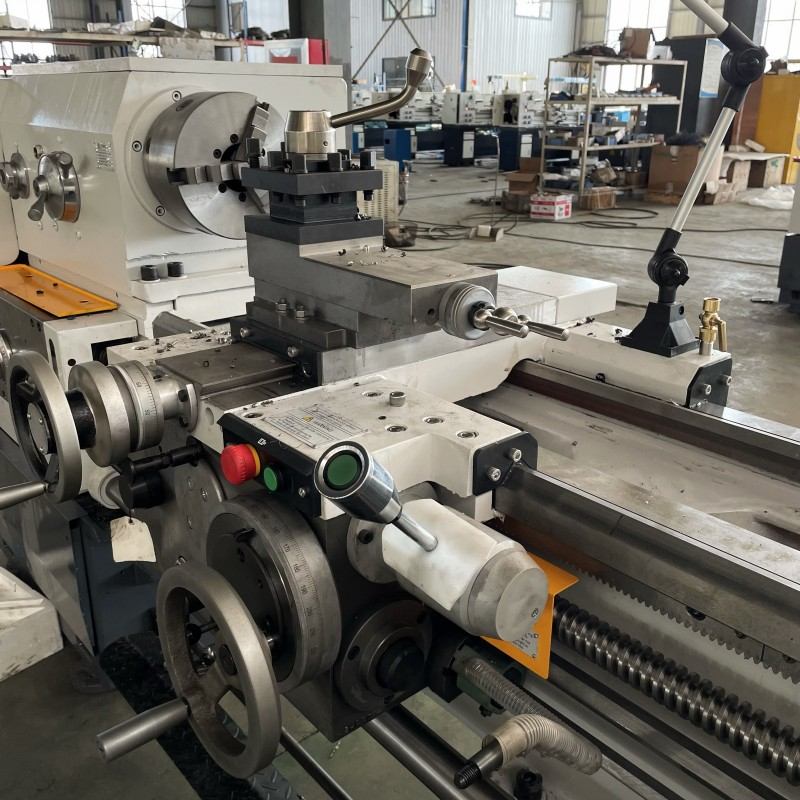

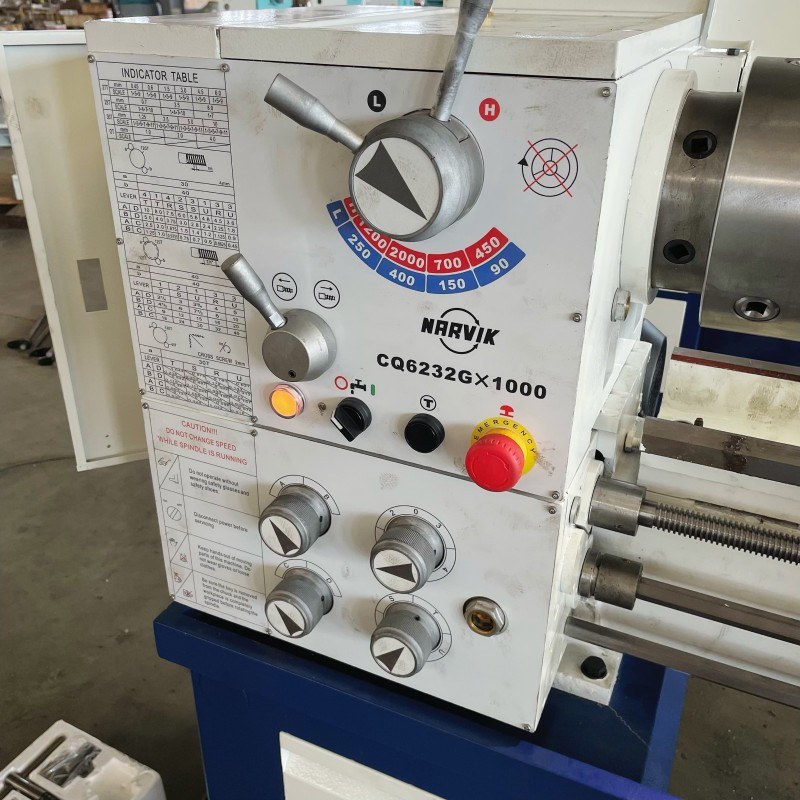

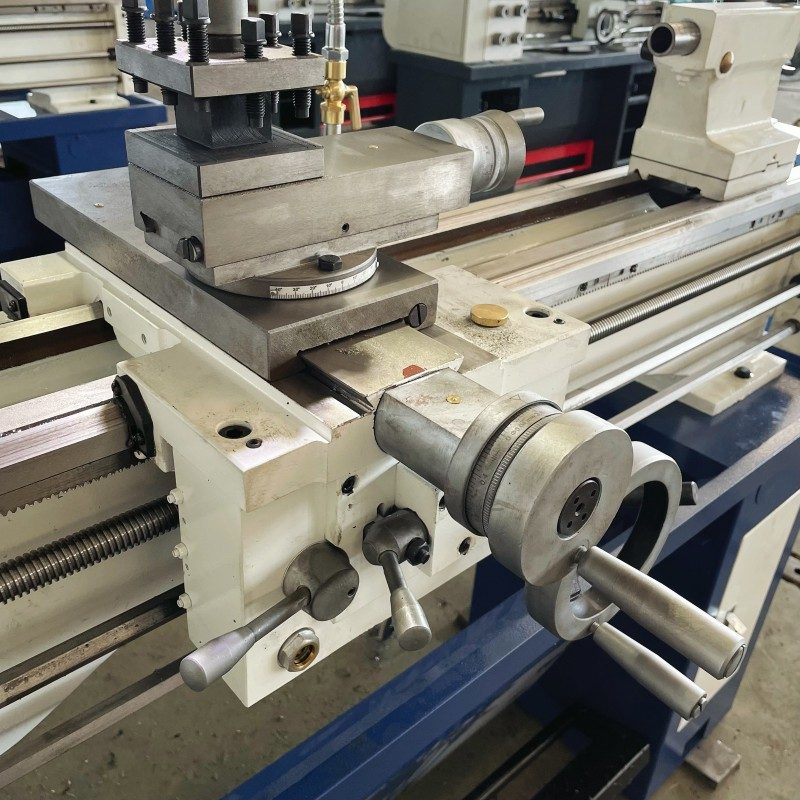

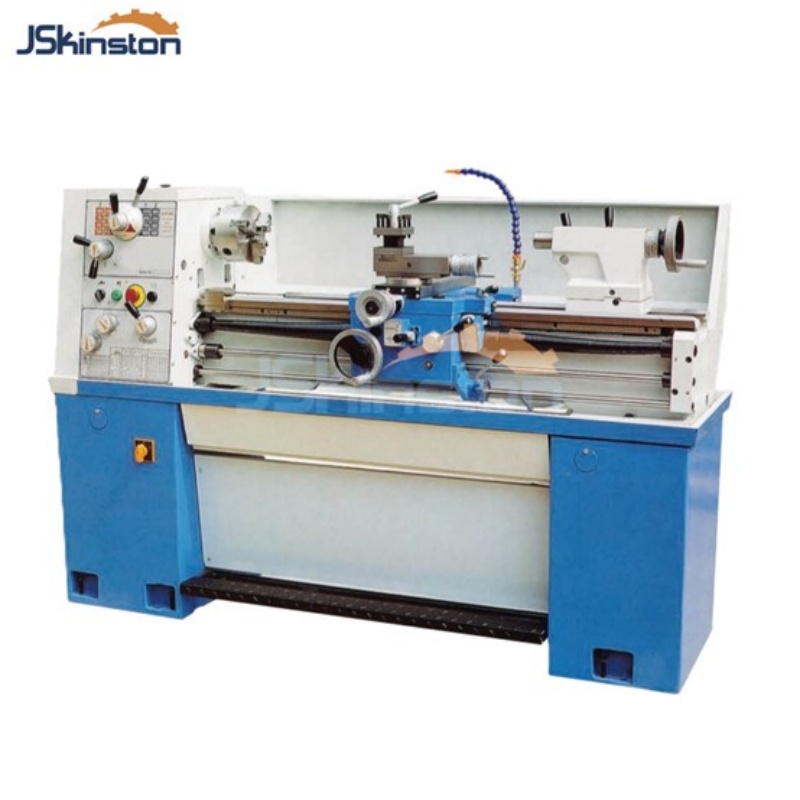

C0632 bench lathe is a compact, precision-engineered metalworking machine designed to be mounted on a workbench or sturdy table, offering full turning capabilities in a space-saving package. Whether you are a hobbyist, a prototype developer, a repair technician, or running a small manufacturing shop, a bench lathe delivers the power and accuracy needed for a wide range of turning operations—including external and internal cutting, facing, drilling, boring, threading, and parting.
specification
|
SPECIFICATIONS |
MODEL |
|
|
Capacity |
C0632 |
C0636 |
|
Max. swing over bed |
330mm(13”) |
340mm(14”) |
|
Max. swing over slide |
198mm(7-25/32”) |
224mm(8-13/16”) |
|
Swing in gap diameter |
476mm(18-3/4”) |
502mm(19-3/4”) |
|
Swing in length |
210mm(8-1/4”) |
|
|
Bed width |
187mm(7-3/8”) |
|
|
Spindle nose |
D1-4 |
|
|
Spindle bore |
38mm(1-1/2”) |
|
|
Range of spindle speed |
70-2000r/min |
|
|
Cross slide width |
130mm(5-3/32”) |
|
|
Cross slide travel |
170mm(6-11/16”） |
|
|
Leadscrew thread |
3mm or 8T.P.I |
|
|
Max.section of tool |
16x16mm(5/8”x5/8”) |
|
|
Longitudinal feeds range |
0.002-0.548mm/rev |
|
|
Cross feeds range |
0.007-0.0187mm/rev |
|
|
Inch threads range |
34 Nos.4-56 T.P.I |
|
|
Diametrical pitches range |
26 Nos,0.4-7 M.P |
|
|
Quill diameter |
32mm(1-1/4”) |
|
|
Quill travel |
100mm(3-15/16”) |
|
|
Quill taper |
MT NO.3 |
|
|
Main motor power |
1.5kw(2HP) |
|
product introduction
Why choose us
Community charging overall solution covers all application
Mature And Stable Technology
Support Customized Solutions
Complete After-sales Service
--
our certification
Authoritative Certifications, Stable and Reliable Quality.

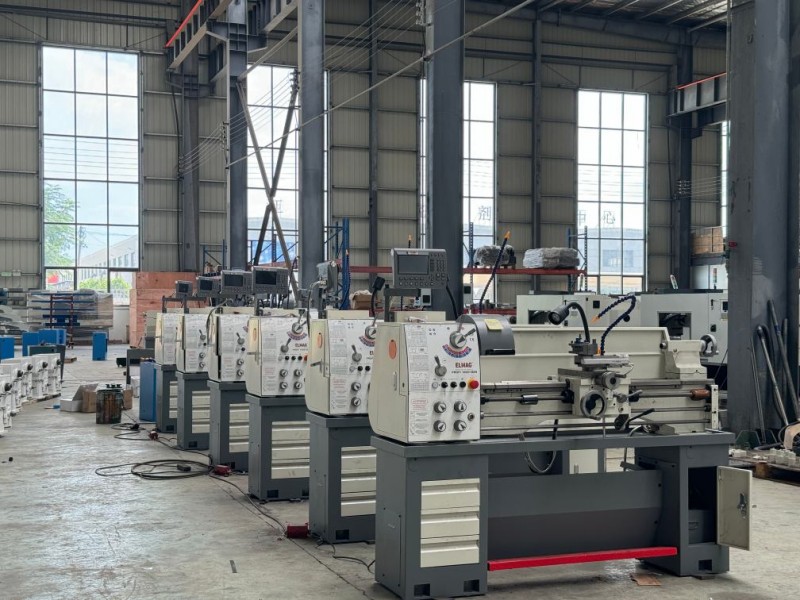

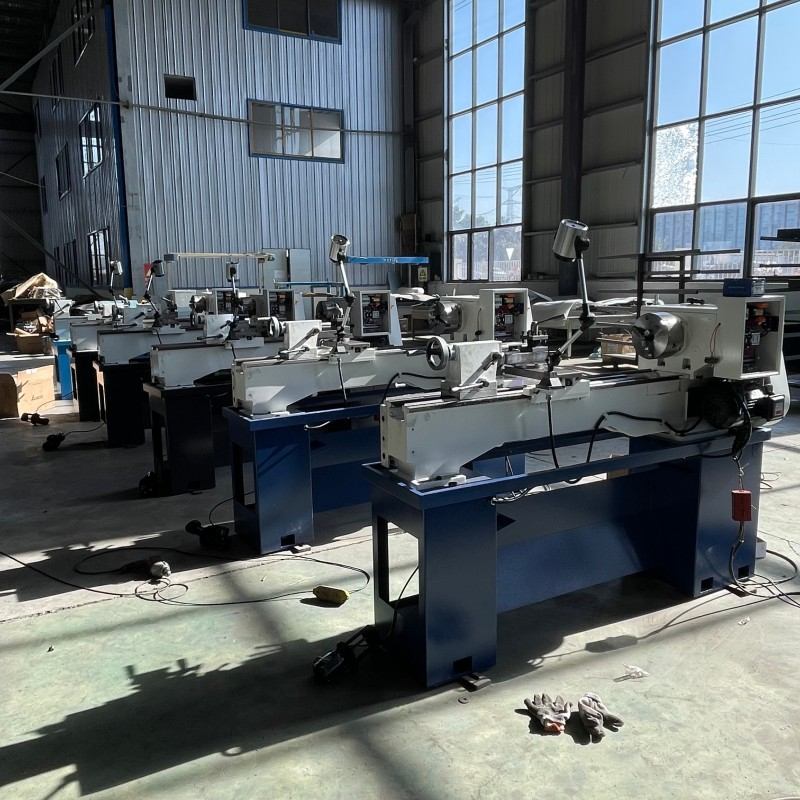

factory show
Professional Production Base, Strength in Precision Manufacturing
Packing and shipping
Safe & Professional Transportation, On-Time Delivery Guaranteed
FAQ
1.What materials can a bench lathe machine?
A bench lathe can machine a wide range of materials including aluminum, brass, copper, steel, stainless steel, and plastics. The specific capability depends on the motor power and rigidity of the machine model you choose.
2.Can I cut threads on a bench lathe?
Yes, most bench lathes are capable of cutting both imperial and metric threads. They are equipped with lead screws and thread cutting gearboxes that allow operators to produce precise internal and external threads on various workpiece materials.
3.How long is the warranty period of this product?
We provide one-year warranty for the industrial universal lathe.
4.What is the MOQ and delivery time of the lathe?
MOQ 1 set, delivery in 40 working days after advance payment.
5.Do you provide technical training for the lathe?
Yes, on-site training for installation, use and maintenance is available.
