VMC855 vertical machining center is a popular 3-axis CNC vertical milling machine widely adopted by metal processing factories, mold workshops and component manufacturers all over the world. The model name VMC855 refers to its standard X-axis travel of 800mm, Y-axis travel of 550mm, suitable for medium-size precision workpiece machining.
Different from conventional manual milling machines, the VMC855 CNC machining center integrates milling, drilling, boring, tapping and reaming functions. Manufacturers can finish multiple machining procedures in one single clamping, greatly reducing repeated positioning errors and improving production efficiency.
Most standard VMC855 machines adopt heavy-duty HT300 cast iron bed. After vibration aging treatment, the whole machine maintains stable rigidity during long-time continuous cutting, effectively resisting vibration and thermal deformation. Two common guide options are available: ball linear guides for high-speed light cutting and roller linear guides for heavy-duty metal roughing.
Key Standard Specifications of VMC855
The mainstream travel of VMC855: X:800mm, Y:550mm, Z:550mm, working table size 1000×550mm.

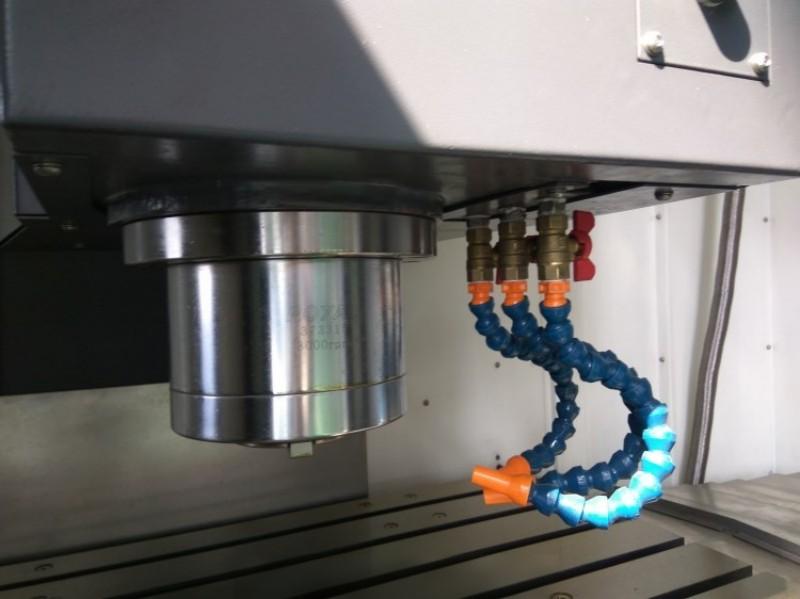

Spindle taper normally supports BT40 or optional BT50. Spindle speed ranges from 6000rpm up to 12000rpm based on customer demands. It is commonly equipped with a 24-tool arm-type automatic tool changer, realizing fast automatic tool switching without manual operation.
Multiple CNC control systems can be configured on VMC855 vertical machining center, including FANUC, Siemens, Mitsubishi, GSK and Syntec. Customers can choose suitable controllers according to operator habits and budget. Optional accessories contain the 4th axis rotary table, chip conveyor, oil cooler and tool setter to expand machining capability.
Main Applications of VMC855 Machining Center
VMC855 CNC milling machine has extremely wide adaptability for different materials, including aluminum alloy, steel, stainless steel, cast iron, copper and engineering plastics. It serves multiple core industries:
1.Mold manufacturing: Plastic injection molds, die casting molds, stamping mold plates;
2.Automotive industry: Engine housings, fixture jigs, auto structural components;
3.General machinery: Gear boxes, pump bodies, valve parts, mechanical brackets;
4.New energy & automation equipment: Aluminum shell, fixture and precision structural parts;
5.Aerospace and electronics: Medium-size precision prototypes and batch components.
Whether for small-batch prototype processing or mass production, VMC855 balances precision, speed and cost, making it one of the most cost-effective medium-sized CNC machining centers.
Core Advantages of Choosing VMC855 Vertical Machining Center
1.Strong structural rigidity and stable precision
The reinforced cast iron structure minimizes vibration during heavy cutting. The positioning accuracy can reach ±0.005mm, stable enough for long-term continuous batch production.
2.High automation saves labor cost
Automatic tool magazine and full CNC programming reduce dependence on experienced operators. Once the program is set, the machine can run continuously and guarantee consistent part quality.
3.Flexible configuration for diversified demands
Manufacturers provide customizable spindle, guide type, CNC system and auxiliary devices. Clients can configure light-cutting version or heavy-duty version VMC855 based on their processing materials.
4.Good cost performance
Compared with larger VMC1060 machining centers, VMC855 occupies smaller workshop space with lower investment cost. It covers most medium-size workpiece demands and brings fast return on investment for small and medium factories.
Frequently Asked Questions About VMC855
Q1: What is the difference between VMC855 and VMC850?
The main difference comes from Y-axis travel. Standard VMC855 has 550mm Y travel, while VMC850 usually comes with 500mm Y travel. VMC855 offers larger processing space and can handle wider workpieces.
Q2: Can VMC855 be installed with a 4-axis rotary table?

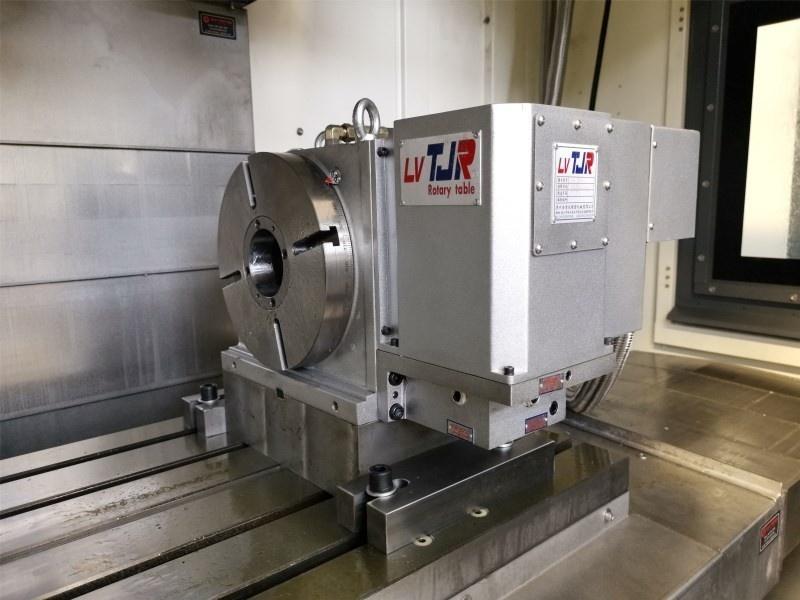

Yes. Almost all VMC855 vertical machining centers reserve interfaces for the 4th axis. After installing a rotary table, it can complete multi-sided machining without re-clamping.
Q3: What voltage options are available for VMC855?
We support customized voltage to meet global standards, including 380V/50Hz 3PH, 380V/60Hz 3PH and other local power requirements for overseas customers.
